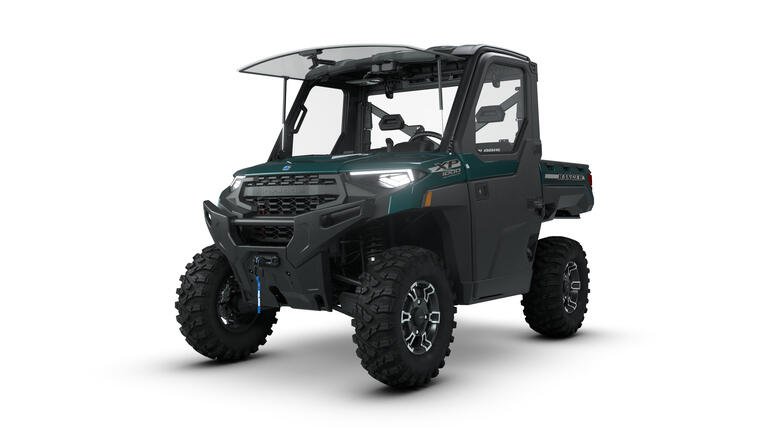

2026 Polaris RANGER XP 1000NorthStar Edition Premium
Side by Side (SxS)
Power Through Tasks and Trails in Any Weather
Delivers more power for task-to-trail performance along with fully-enclosed cab for all-season comfort.
Starting at $29,999 MSRP
Specs and Features
ENGINE & DRIVETRAIN
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
----
Engine Type
4-stroke twin cylinder DOHC
Fuel System
Electronic fuel injection
Horsepower
82
Transmission/Final Drive
Gen 2, Automatic PVT H/L/N/R/P; shaft
DIMENSIONS
Bed Box Dimensions
36.75 x 54.25 x 12.5", (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) , CA Models: 600 lbs. (272 kg)
Curb Weight
2123 lbs. (963 kg)
Estimated Dry Weight
1,995 lbs. (905 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Towing Capacity
2,500 lbs. (1134 kg)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 65 x 79.5", (305 x 165 x 201 cm)
Payload Capacity
1,275 lbs. (578 kg), CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Turning Radius
13
Wheelbase
81" (206 cm)
SUSPENSION
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
TIRES / WHEELS
Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum
BRAKES
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake
Park in-transmission
TECHNOLOGY
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Not equipped, accessory options available
Rear Camera
----
Security
Polaris P.A.S.S. anti-theft system
COMFORT & CONVENIENCE
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type
3-person bolstered bench seats with 3-point harness and adjustable driver seat
Steering
Tilt adjustment
Electronic Power Steering
High-output EPS
Cab Components
Factory-installed cab system with powered doors, roof, glass tip-out windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost
Speed Limiting
Speed Limiting Controlled in Gauge
LIGHTING & ELECTRICAL
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
EXTERIOR FEATURES
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Vehicle Protection
Large steel bumper, full-coverage skid plate, A-arm guards
Door Type
Powered window doors
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
ADDITIONAL SPECIFICATIONS
Warranty
2-year limited warranty*
Protection From The Elements:
The factory-installed cab system - including a tip-out windshield and powered front windows - keep you comfortably riding in rainy, snowy or dusty conditions.
Control Your Climate:
Factory-installed heating and air conditioning lets you control the climate for all-season comfort. For quick relief on hot days, a variable AC compressor automatically varies its pumping capacity to deliver faster cooling and lower temperatures, even when at idle and low engine RPMs.
Ride Command:
Unlock integrated RIDE COMMAND technology in your vehicle’s display, with the most sophisticated off-road GPS navigation system and feature set. Communicate, tune into your machine and stay prepared for whatever the day brings. Plus, use the factory-installed rear camera to confidently reverse. Available on NorthStar Ultimate.
Immersive Sound:
Standard with the Ultimate trim, integrated JBL® audio speakers deliver precise audio clarity and premium sound. Run AM/FM radio or connect to Bluetooth via the RIDE COMMAND infotainment system.
Performance With Precision:
Stay smooth and controlled on the job or trail, thanks to 3-position throttle control with different drive modes. Choose ‘Performance’ for more response, ‘Standard’ for everyday driving, or ‘Work’ for improved low-speed control
Overcome Obstacles:
Easily overcome rocky terrain with 14" of ground clearance that delivers more space to glide over bumps and obstacles.
Prepped With Pulling Power:
Complete the job or get back on the trail quicker with a factory- installed 4,500-lb. winch with synthetic rope, autostop, and wireless remote.
Heavier Loads, Fewer Trips:
1,000-lb. box capacity and 2,500-lb. towing capacity to get more done in fewer trips.
Effortless Shifting:
Command the driver’s seat with confidence, thanks to the upgraded transmission. It reduces shift effort by up to 50% to easily shift between drive, park, and reverse - delivering a consistent, predictable feel.
Enhanced Protection:
Boldly navigate obstacles with a rigid one-piece chassis, a redesigned front end featuring a larger front bumper, and a full-body skid plate.
Sure-Footed Traction:
Navigate the toughest terrain confidently with 29” 8 ply Pro Armor tires providing enhanced puncture resistance and a more peaceful cab experience. The 14” aluminum wheels add premium styling to elevate rough rides.
Increased Uptime:
Class-leading service intervals (200 hours or 2,000 miles) keep you up and running longer to enhance productivity.
