Overview
White

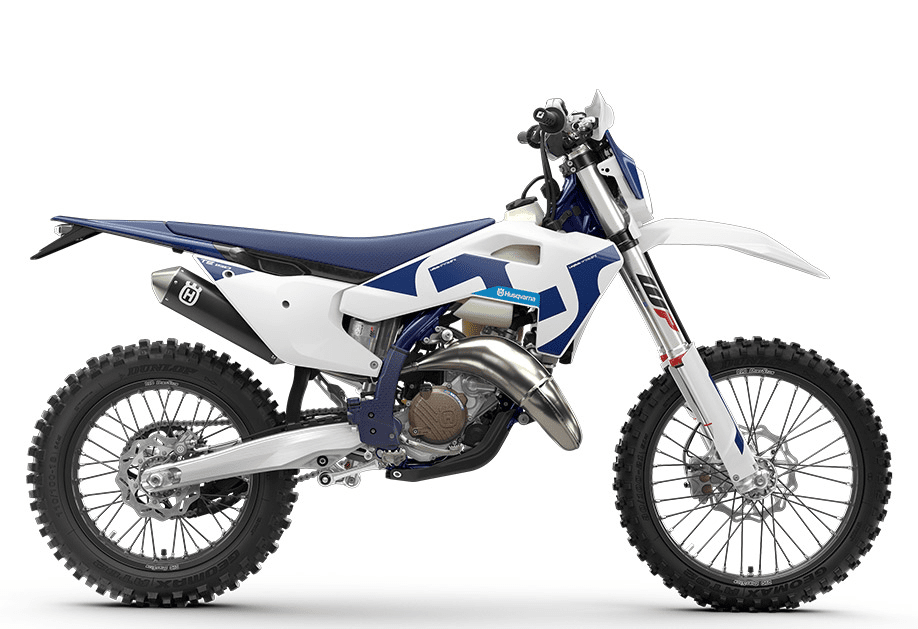

2026 Husqvarna TE150
Motorcycle
TE 150
Powered by a lightweight engine fuelled by Throttle Body Injection (TBI), the TE 150 produces impressive torque for a small-capacity 2-stroke. Expertly assembled with the latest technical innovations to deliver best-in-class performance, this versatile machine is highly capable in the hands of both beginners and experienced racers alike. WP XACT suspension, combined with a perfectly balanced chassis, inspires confidence throughout every ride or special test. Completing the build of this popular model are the Brembo clutch and brake systems, a combined start/stop switch, Michelin tyres, and distinctive Swedish-inspired graphics.
Specs and Features
Engine
Primary drive
23:73
Transmission
6-speed
Battery capacity
2 Ah
Cooling
Liquid cooled
Secondary gear ratio
13:48
Starter
Electric starter
Stroke
54.5 mm
Bore
58 mm
Clutch
Wet multi-disc DS clutch, Brembo hydraulics
Displacement
143.99 cm³
EMS
Vitesco Technologies EMS
Design
1-cylinder, 2-stroke engine
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
Chassis
Weight (without fuel)
100 kg
Tank capacity (approx.)
8.5 l
Wheelbase
1489 mm
Front brake disc diameter
260 mm
Rear brake disc diameter
220 mm
Chain
520 X-Ring
Frame design
Central double-cradle-type 25CrMo4 steel
Front suspension
WP XACT cartridge Ø 48 mm
Ground clearance
359 mm
Handlebar
Pro Taper, Aluminium Ø 28/22 mm
Rear suspension
WP XACT Monoshock with linkage
Seat height
952 mm
Silencer
Aluminium
Steering head angle
63.9 °
Rear subframe design
Aluminum-reinforced polyamide
Suspension travel (front)
300 mm
Suspension travel (rear)
300 mm
Tyre dimensions (front/rear)
80/100; 110/100
Wheels
1.60 x 21"; 2.15 x 18"
Wheels
Spoked wheels with aluminium rims
Wheelbase
1489 ± 10 mm
Engine
The TE 150 has inherited the same fuel-injected technology from the bigger TE 250 and 300. This adds the convenience of a 4-stroke engine by eliminating the need to premix fuel or adjust jetting for altitude. The engine also uses specific shaft arrangements, which are designed to harness the rotating mass of the engine for nimble handling. This, among other developments, makes it a lightweight and compact engine providing usable enduro-specific power while maintaining the low-cost maintenance of a 2-stroke.
Cylinder
The cylinder features a 58 mm bore and is fueled by Throttle Body Injection (TBI). An innovative electronic exhaust control system manages the simultaneous opening of the lateral ports and main exhaust port for delivering maximum power throughout the rev-range. Together with a machined finish on the upper contour of the exhaust port, engine performance is exceptional.
Throttle body
The TE 150 uses a 39 mm throttle body with dual injectors positioned to optimize flow for a more immediate throttle response and exceptional rideability. Idle is controlled by the throttle valve, with one low load injector and one top feed injector ensuring maximum performance. Additionally, a Throttle Position Sensor (TPS) offers reliable cold starting with the throttle valve pivoting on ball bearings for a smoother throttle action.
Oil tank
An electronic oil pump feeds vital 2-stroke oil into the engine. It is located just below the oil tank and feeds the oil via the reed cage, meaning the oil is only mixed with air at this stage. The pump is controlled by the EMS and delivers the optimal amount of oil according to the current RPM and engine load. The oil tank is connected to a filler hose which runs through the upper tube of the frame to a filler cap conveniently located for easy refills.
Crankcase
Designed to be low in weight without sacrificing strength or reliability, the crankcases are made using a high-pressure die cast production process to create a thin-wall design. To centralize engine mass, the shaft arrangements are precisely positioned to harness rotating masses at the ideal centre of gravity.
Exhaust
Tailored specifically for the TE 150 using an innovative 3D design process, the header pipe ensures unrestricted performance and is designed for maximum ground clearance to reduce the risk of impact damage out on the trail. The silencer also features an aluminum mounting bracket and advanced internal construction for excellent noise damping and weight saving.
